Composite Drainage Net vs Traditional Drainage Systems

[Feature Article] – Drainage systems are essential in civil engineering and environmental projects to manage water flow, prevent soil erosion, and maintain structural stability. Traditional drainage methods such as gravel layers and perforated pipes have been widely used, but modern geosynthetic solutions like composite drainage nets are rapidly gaining popularity. This article compares composite drainage nets with conventional drainage systems to highlight their respective advantages.

Traditional Drainage Systems

Conventional drainage solutions rely on natural aggregates and piping to redirect water. Common examples include gravel drainage layers beneath roadbeds, perforated pipe systems in retaining walls, and sand layers for filtration. While effective, these systems often require significant excavation, large volumes of raw materials, and heavy machinery for installation.

Composite Drainage Nets

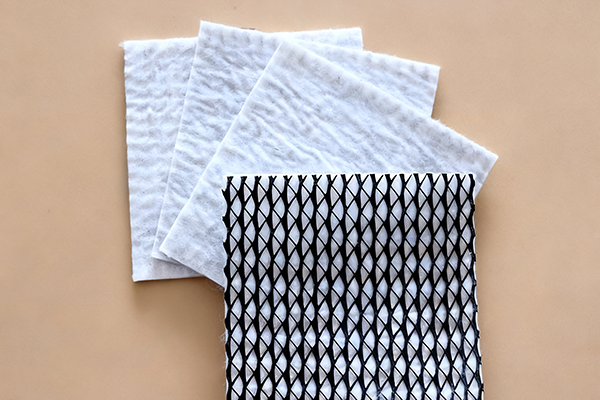

Composite drainage nets are geosynthetic materials engineered with a three-dimensional core structure bonded to geotextiles. They combine filtration, drainage, and protection in a single product. The geotextiles filter soil particles while the net core provides a continuous flow channel, ensuring efficient water management with reduced material use and installation time.

Key Comparison

• Material Use – Traditional systems consume large amounts of gravel, while composite drainage nets require minimal raw material.

• Installation Speed – Composite drainage nets are faster to install, reducing labor and equipment needs.

• Performance – Composite drainage nets provide consistent flow capacity and resist clogging better than gravel or sand layers.

• Space Efficiency – Geosynthetic drainage reduces the need for thick aggregate layers, maximizing usable project space.

• Cost – Although initial product cost may be higher, composite drainage nets lower transportation and maintenance expenses over time.

• Sustainability – Composite drainage nets reduce environmental impact by minimizing quarrying and truck transport of aggregates.

Applications

• Landfills – Efficient leachate collection and drainage.

• Highways and Railways – Subgrade drainage and soil stabilization.

• Retaining Walls – Preventing hydrostatic pressure build-up.

• Tunnels – Waterproofing and water control systems.

• Green Roofs – Lightweight drainage layers supporting vegetation.

Conclusion

Composite drainage nets represent a modern alternative to traditional drainage systems, offering speed, efficiency, and sustainability. While conventional gravel and pipe-based methods remain reliable, the geosynthetic approach provides clear advantages in terms of installation, long-term performance, and environmental impact. As infrastructure projects continue to prioritize cost-effectiveness and sustainability, composite drainage nets are set to play an increasingly important role in water management engineering.
